In the microcontroller domain, the ESP32-S3 and Teensy 4.1 represent two distinct technological approaches: the former centers on “connectivity and intelligence,” dedicated to creating IoT devices with seamless network access; the latter focuses on “performance and control,” aiming to deliver powerful capabilities for demanding computational and precision control tasks. Understanding their design philosophies and feature differences is key to selecting the appropriate platform.
In this article:
Part 1. Differences in Core Positioning and Design Part 2. Strength Comparison of Key Characteristics and Capabilities Part 3. Typical Application ScenariosDifferences in Core Positioning and Design
From their inception, these two chips have targeted and served entirely different domains. The ESP32-S3 stands as Espressif's flagship product for the era of “Internet of Everything,” with its design philosophy centered around the core concepts of ‘connectivity’ and “intelligence.” It is not merely a microcontroller but a highly integrated wireless System-on-Chip (SoC). Its built-in Wi-Fi and Bluetooth capabilities make it inherently suited for IoT devices, smart home sensors, and wearables. Its value lies in seamlessly connecting devices to networks while empowering them with local lightweight AI processing capabilities, serving as the foundational building block for modern smart nodes.
In contrast, the Teensy 4.1 embodies PJRC's pure pursuit of “ultimate performance” and “precise control.” It strips away wireless capabilities, dedicating all chip resources and board space to enhancing computational power and input/output interfaces. Its design philosophy resembles that of a “specialist,” focused on solving highly specialized problems demanding extreme computational speed and I/O throughput within wired environments. It exists not to connect to the world, but to control and sense the physical world, executing complex decisions and calculations instantaneously. This makes it an ideal choice for high-performance industrial control, professional audio equipment, and scientific research instruments.

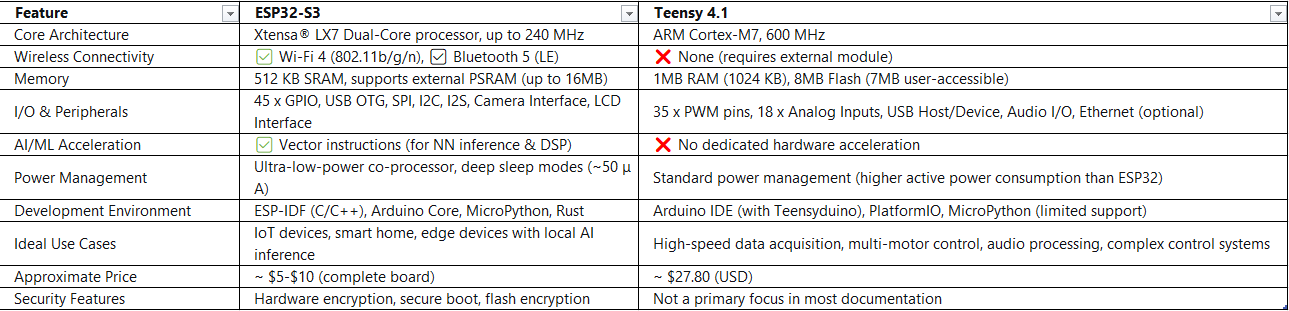

Strength Comparison of Key Characteristics and Capabilities

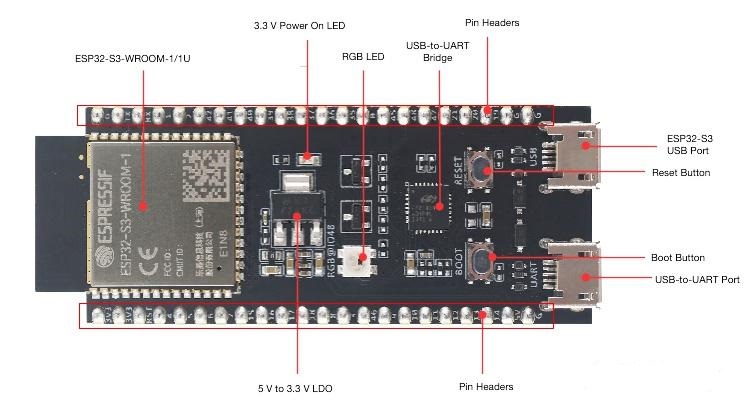

In terms of specific features, the strengths of both chips complement each other distinctly. The most prominent advantage of the ESP32-S3 is its complete wireless communication stack. Developers gain stable Wi-Fi connectivity and low-power Bluetooth (BLE) support without needing to add any additional modules, significantly simplifying product design while reducing complexity and cost. Furthermore, its unique vector instruction set enables hardware acceleration for machine learning inference at the IoT edge—such as keyword recognition and image classification—marking a crucial step toward “intelligence.” Concurrently, its proprietary ultra-low-power coprocessor and sophisticated power management model deliver unmatched endurance in battery-powered, long-term monitoring applications.

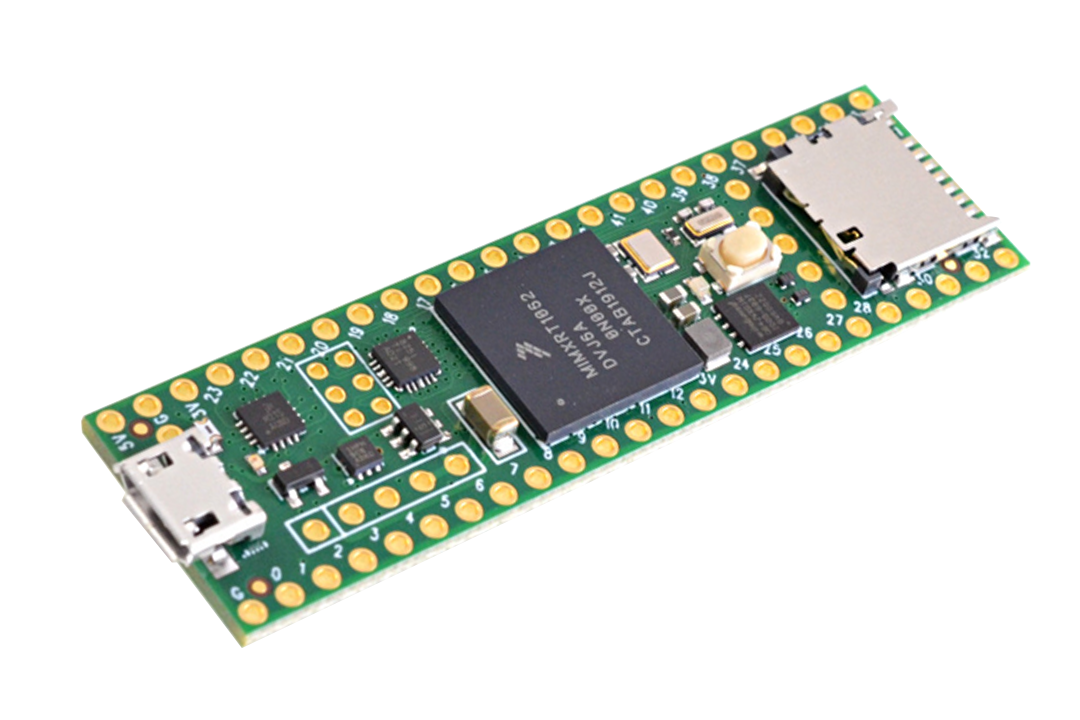

The Teensy 4.1's strength lies in its “monster” computational performance. Its ARM Cortex-M7 core operates at a 600MHz clock speed, featuring a double-precision floating-point unit (FPU) and substantial on-chip RAM, placing its raw computational power among the elite tier in the microcontroller domain. This makes it exceptionally well-suited for handling high-sampling-rate audio streams, real-time audio synthesis and effects processing, and executing complex mathematical transformations like filter libraries and Fourier transforms. On the other hand, it offers an exceptionally rich array of physical interfaces, including numerous PWM outputs and analog input channels. This enables precise simultaneous control of dozens of servos or motors, or the reading of extensive sensor data—a decisive factor for many control-intensive projects.
Typical Application Scenarios
Given these fundamental differences, the two naturally evolved distinct application domains. The primary use cases for the ESP32-S3 are invariably tied to “cloud” and “intelligence.” It serves as the “brain” for smart bulbs, Wi-Fi cameras, environmental monitoring stations, Bluetooth remote controls, and various devices requiring data upload to the cloud or reception of cloud-based commands. Any project requiring network interaction, low-power extended standby, or attempting to implement basic intelligent sensing at the device level is where the ESP32-S3 truly shines.
Meanwhile, the Teensy 4.1's domain is built upon offline high-performance computing and precision control. It serves as the engine powering digital audio workstations (DAWs), music synthesizers, high-performance multi-axis CNC machines, 3D printer mainboards, scientific experiment data acquisition systems, and custom game controllers. In these scenarios, task complexity and timeliness take precedence. They demand controllers to complete extensive computations and respond within extremely narrow time windows—challenges precisely engineered for the Teensy 4.1's formidable performance.
The core differences between the ESP32-S3 and Teensy 4.1 manifest in three key areas: First, their distinct positioning—the ESP32-S3 emphasizes wireless connectivity and edge intelligence, while the Teensy 4.1 prioritizes extreme performance and precision control. Second, their complementary features—the ESP32-S3 excels in integrated wireless communication and low-power design, whereas the Teensy 4.1 shines in high-speed computing and extensive interface capabilities. Third, their application scenarios diverge: ESP32-S3 suits IoT and smart devices, while Teensy 4.1 excels in specialized fields like industrial control and audio processing. The choice hinges on whether the project demands “connectivity” or “performance.”
One-Stop HDI PCB Manufacturer and Its PCB Via Filing Capabilities
If you're looking for turnkey HDI electronics manufacturing services (EMS) from hardware development to PCBA fabrication and box-build assembly, you can work with the one-stop HDI PCBA manufacturer PCBONLINE.
Founded in 1999, PCBONLINE has R&D capabilities for HDI projects and EMS manufacturing capabilities, including via filling for stacked vias. It provides 4-to-64-layer HDI PCB fabrication, assembly, and PCBA box-build assembly. You can order various HDI PCBs from PCBONLINE, such as FR4, polyimide (flexible PCB), polyimide + FR4 (rigid-flex PCB), and PTFE/Rogers (high-frequency PCB).
3000m² of production capacity per day for HDI PCBs with builds of 1+N+1, 2+N+2, 3+N+3,4+N+4, and arbitrary interconnection in any layers.
PCBONLINE has hardware and software R&D capabilities for IoT applications requiring HDI design, including PCBA and enclosures.
We can manufacture complex PCBs with stacker vias, via-in-pad, microvias, inlay boards, heavy copper designs, and hybrid and fine structure lay-ups.
Besides HDI PCB fabrication, we have powerful capabilities in fine-pitch assembly for HDI PCB assembly.
We have rich R&D and manufacturing experience for HDI applications such as FPGA boards.
High-quality HDI PCB and PCBA manufacturing certified with ISO 9001:2015, IATF 16949, RoHS, REACH, UL, and IPC-A-610 Class 2/3.
Here'e the PCB via filing capabilities at PCBONLINEL:
- Micriavia filling with copper: laser via size 0.1-0.125mm, priority 0.1mm
- Finished hole size for via-in-pad filling with resin: 0.1-0.9mm (drill size 0.15-1.0mm), 0.3-0.55mm normal (drill size 0.4-0.65mm)
- Max aspect ratio for via-in-pad filling with resin PCB - 12: 1
- Min resin plugged PCB thickness: 0.2mm
- Max via-filling ith resin PCB thickness: 3.2mm
- Making different hole sizes with via filling in one board: Yes
- Via filling with copper/silver: Yes
If you need HDI PCBAs or any other PCBAs requiring via filling, please send your email to PCBONLINE at info@pcbonline.com. We will provide one-on-one engineering support to you.
Conclusion
Via filling is used for creating stacked vias in HDI PCB fabrication, BGA/CSP/QFN IC packaging, and filling PCB via-in-pad with resin during multilayer PCB fabrication. If you need one-stop electronics manufacturing for your HDI PCBA project, contact the one-stop advanced PCB manufacturer PCBONLINE for high-quality PCBA and box-build solutions tailored to your project's needs.
