PCBA Contract Manufacturing with NDA and Quality Certifications

When you need high-quality PCB assembly services, partner with a PCBA contract manufacturer. A PCBA contract manufacturing collaboration ensures that your electronic product is built to specification, delivered on time, and protected by legal safeguards, such as a Non-Disclosure Agreement (NDA).

Choosing a PCBA manufacturer, like PCBONLINE, with the right quality certifications not only ensures product reliability but also boosts your market competitiveness. Below, we explore everything you need to know about PCBA contract manufacturing, from its scope and processes to IP protection, certifications, and factory visits.

Part 1. Is PCBA Contract Manufacturing EMS? No.

Although many people think PCBA contract manufacturing and Electronic Manufacturing Services (EMS) are the same, they are not. EMS has a larger scope than PCBA contract manufacturing.

PCBA contract manufacturing refers to providing printed circuit board assembly services under a contractual agreement. Its scope is flexible. It can cover from assembly-only (where the client provides PCB boards and components) to turnkey services (PCB fabrication, component sourcing, assembly, and testing). If the client requires turnkey services, including the enclosures and box-builds to build the final products, the PCBA contract manufacturer here essentially is OEM PCB manufacturing.

EMS, on the other hand, is broader, covering the entire electronics production chain. It covers from design and prototyping to PCB assembly, system integration, testing, packaging, and logistics. PCBONLINE is an EMS PCBA manufacturer with R&D capabilities, so our EMS PCBA manufacturing can include software and hardware R&D, schematics, PCB layout, enclosure design, and design of accessories, depending on your needs.

To conclude, the relationship between the two services is that PCBA contract manufacturing can be part of EMS, but EMS includes many additional stages before and after assembly.

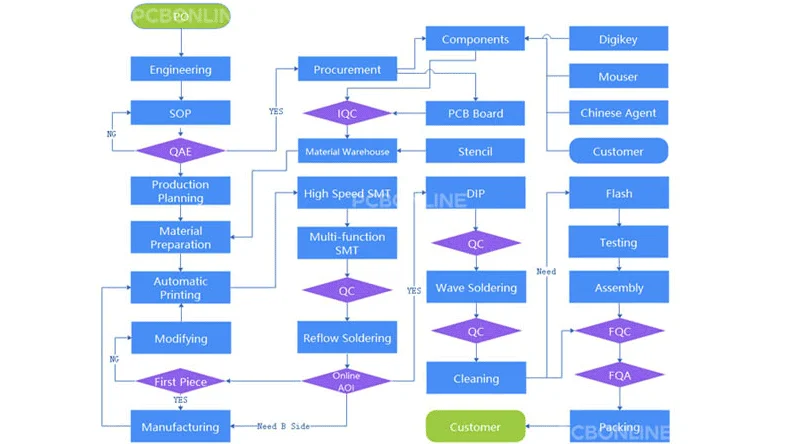

PCBA Contract Manufacturing Process

A typical PCBA contract manufacturing process follows these steps:

• 1. Project Review – The manufacturer reviews your Gerber files, BOM (Bill of Materials), and assembly requirements.
• 2. Quotation – A detailed quote is provided, including lead time and service scope.
• 3. PCB Fabrication (Optional) - If included, the manufacturer fabricates PCBs to your design. PCBONLINE has rich experience in advanced PCBs. Before PCB fabrication, the manufacturer PCBONLINE provides a free and professional design for manufacturing (DFM) to ensure the manufacturability of the PCBA and offers suggestions to the client if the design needs any optimization.
• 4. Component Sourcing (Optional) - Procurement from authorized suppliers to ensure authenticity. At PCBONLINE, we have a global component supply network, with our supply chain team centered in Hong Kong. We source electronic components and soldering materials from original component factories and first-class suppliers we have authorized and have maintained long-term cooperation with.
• 5. SMT Assembly – Automated pick-and-place machines mount SMD components on PCB pads. We have 4 SMT assembly lines. Each of our automated SMT lines includes a loader, a solder paste printing machine, a solder paste inspection (SPI) machine, three pick-and-place machines (2 YAMAHA YSM20R machines for quick placement of smaller-footprint surface-mount devices and 1 YAMAHA YSM10 for placement of larger-footprint SMDs like ICs and connectors), two 3D automated optical inspection (AOI) machines before and after reflow to ensure the SMT soldering quality, and one lead-free reflow soldering oven.
• 6. THT Assembly – Through-hole assembly is also called DIP assembly. The leads of through-hole components are half-automatically or manually inserted through the PCB holes. Then the PCBA is placed in a custom fixture and soldered using wave soldering.
• 7. Inspection & Testing – SPI, dual AOI, X-ray inspection (for hidden-joint components like BGAs), first-article inspection, in-circuit test, PCBA functional testing, and aging test. If the client requires box-build assembly in the PCBA contract manufacturing project, PCBONLINE also provides the application simulation test after labeling to ensure the final product performance and reliability.
• 8. Packaging & Delivery - Products are safely labeled, packed, and shipped to the client.

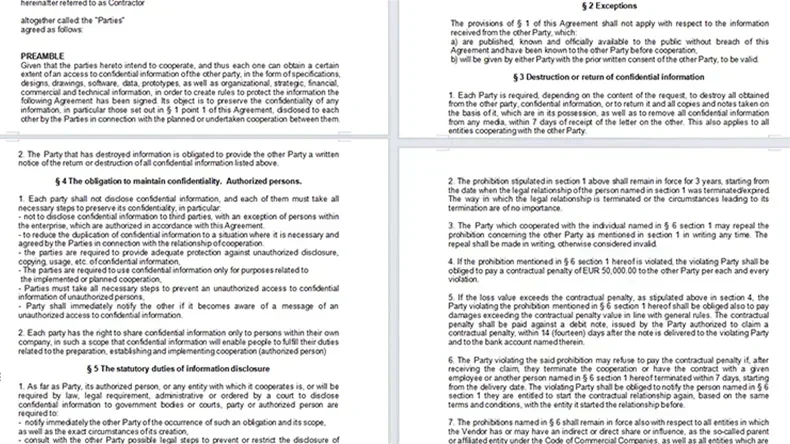

Part 3. Signing an NDA for PCBA Contract Manufacturing

Your intellectual property is one of your most valuable assets. At PCBONLINE, protecting it is a top priority. We are willing to sign a Non-Disclosure Agreement (NDA) before receiving your design files and project details.

An NDA ensures that:

• Your design files and BOM will not be shared with third parties.
• All employees and subcontractors involved are bound by confidentiality obligations.
• Data security protocols prevent unauthorized access or leaks.

Part 4. Certifications of PCBA Contract Manufacturing

When selecting a PCBA contract manufacturer, quality certifications are a must-have. PCBONLINE holds multiple industry certifications, such as:

• ISO 9001 – Quality Management System. Including ISO 9001:2015 and ISO 14001:2015.
• IATF 16949 – Automotive Quality Management
• UL Certification – Safety Compliance for PCB manufacturing
• RoHS & REACH Compliance – Restriction of hazardous substances and environmental compliance

These certifications prove the manufacturer's ability to meet strict quality, safety, and environmental standards.

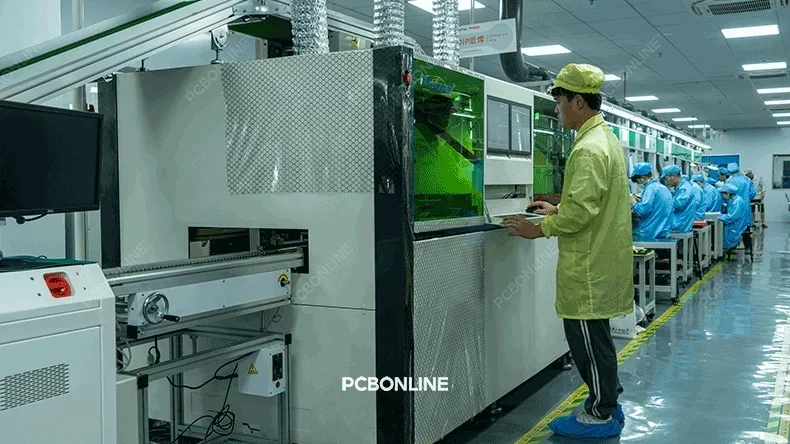

Part 5. PCBA Contract Manufacturer Factory Visit

Visiting the factory of your PCBA contract manufacturer gives you first-hand insight into production capabilities, equipment, and quality control processes.

PCBONLINE's PCBA contract manufacturing factory in Shenzhen features:

• Fully automated SMT lines with pick-and-place machines supporting 376 SMDs and a three-dimensional dual-AOI system
• Dedicated DIP and wave soldering lines
• First-article inspection, X-ray, and ICT testing stations
• Controlled environment for moisture-sensitive components
• Professional engineers oversee every stage of production

A factory visit builds trust and ensures that the manufacturer meets your technical and quality requirements.

Part 6. DFM for PCBA Contract Manufacturing

Design for Manufacturability (DFM) is a crucial step in PCBA production. It involves reviewing your PCB design to ensure it is optimized for manufacturing, reducing errors, improving yields, and lowering costs.

PCBONLINE's engineers provide free DFM checks for clients, covering:

• PCB layer stackup
• Component spacing and orientation
• Solder mask and silkscreen alignment
• BOM components matching the Gerber and 3D assembly drawing
• Thermal reliefs and pad design for manufacturability

Part 7. Partner with the PCBA Contract Manufacturer PCBONLINE with ODM Capabilities

PCBONLINE is a PCBA contract manufacturer that offers comprehensive PCBA manufacturing services custom-made to meet your demands. If you need more than manufacturing, PCBONLINE also offers ODM (Original Design Manufacturing) services. We can help design your product based on your concept and take it all the way to mass production.

Founded in 2005, our two advanced PCB manufacturing bases are in Jiangsu and Jiangxi Provinces, and our turnkey PCB assembly factory is in Shenzhen. Besides, we have an R&D team and a global supply network. We also keep strategic cooperation with the top 3 fixture and enclosure manufacturers in China to manufacture the custom PCBA fixtures and device enclosures.

Our PCBA services include:

• PCB Fabrication: Manufacturing various types of bare PCBs, from prototypes to high-volume production.
• Component Sourcing: Procuring all necessary electronic components, saving the customer time and effort.
• Free DFM/DFT: We provide free Design for Manufacturability (DFM) and Design for Testability (DFT) checks to ensure that designs are optimized for a smooth production process.
• PCBA Assembly: Providing both Surface Mount Technology (SMT) and Through-Hole Technology (THT) assembly services in a single facility.
• Testing and Value-Added Services: Offering a range of quality assurance services, including X-ray inspection for hidden-joint PCBAs, first-article inspection, PCBA functional testing (FCT), IC programming, burn-in test, PCBA coating, enclosures, and box-build assembly.

Whether you need consumer electronics PCBAs, industrial control PCBAs, medical-grade PCBAs, or military-grade PCBAs, PCBONLINE can handle the full PCBA process in-house. To get a quote for your PCBA project, email us at info@pcbonline.com.

Conclusion

PCBA contract manufacturing covers the technical aspects of manufacturing, including component sourcing, PCB assembly, and testing, based on the client's design specifications. Whether you're bringing a new product to market or scaling production, the PCBA contract manufacturer PCBONLINE provides the technical strength, manufacturing capability, and confidentiality you need.
